XEAST XE-368 5-in-1 High Accuracy Environmental Tester with Three-Color Alarm Multifunctional Handheld Meter
- 1.Type ：Anemometer
- 2.Brand Name ：XEAST
- 3.Model Number ：XE-368
- 4.Origin ：Mainland China
- 5.Air velocity Accuracy ：Reading ±3% ±0.3d
- 6.Light Measuring range ：0 Lux~200K Lux, 0Fc~20KFc
- 7.Sound Level Accuracy ：±2.0dB
- 8.Display Type：LED display screen
- 9.Sound Level Applied Standard ：IEC61672-1 CLASS2
- 10.Light Cosine response ：f2'<2%
- 11.Temperature Measurement range ：-20℃ ~ 60℃/-4℉~140℉
XEAST XE-368 5-in-1 High Accuracy Environmental Tester with Three-Color Alarm8 Multifunctional Handheld Meter
Specifications
|
Sound Level |
|
|
Applied Standard |
IEC61672-1 CLASS2 |
|
Accuracy |
±2.0dB |
|
Display |
4digts |
|
Resolution |
0.1dB |
|
Frequency response |
31.5Hz～8kHz |
|
Measurement range |
Auto：35dB～130dB |
|
Frequency weighting |
dBA |
|
Time weighting |
（SLOW）1 |
|
Microphone |
1/2 inch Electric condenser microphone |
|
Visual Led indication |
3 color LED indication ( refer to color and sound level correspondence table in Part 7.1) |
|
Buzzer alarm |
Alarm 20s, stop 60s circularly (preset on, can turn off manually) |
|
Attention: |
Hold the meter in hand or use the tripod to affix the meter in the desired location. The best measuring distance is 1~1.5m away from the microphone to the sound source. |
|
Light |
|
|
Measuring range |
0 Lux～200K Lux, 0Fc～20KFc |
|
Spectral response |
CIE photopic（CIE human eye response curve） |
|
Spectral accuracy |
CIE Vλfunction f1’≦6% |
|
Cosine response |
f2’≦2% |
|
Accuracy |
±3.5% rdg±8dgts.(<10,000Lux) ±4.5% rdg±10dgts.(>10,000Lux) |
||||
|
Data update |
2 times/sec |
||||
|
Photo detector |
One silicon photo diode with filter |
||||
|
3 color LED alarm |
Preset: <500Lux Green; 500-1000Lux: Yellow; >1000Lux: Red; Alarm value can be set by user |
||||
|
Buzzer alarm |
Alarm 20s, stop 60s circularly (preset turn on, can turn off manually) |
||||
|
Air velocity |
|||||
|
Measuring range |
0.5~30 m/s |
1.75~105 km/h |
98.4~5905 ft/min |
0.97~58.3 knots |
1.11~67.0 MPH |
|
Resolution |
0.1 |
0.1 |
1 |
0.1 |
0.1 |
|
Measuring range |
150～9000 CMM |
787～47244 CFM |
|||
|
Resolution |
1 |
||||
|
Accuracy |
Reading ±3% ±0.3d |
||||
|
Sampling rate |
2 times/sec |
||||
|
Area set |
0.1～9999 CM²/0.1～9999 ㎡/0.1 ～9999ft² |
||||
|
Measurement units |
m/s, km/h, ft/min, knots, Mph, |
||||
|
Air speed grade indication |
Yes |
||||
|
3 color LED alarm |
3 color LED indication ( refer to color and air speed correspondence table in Part 7.2) |
||||
|
Buzzer alarm |
Alarm 20s, stop 60s circularly (preset on, can turn off manually) |
||||
|
Temperature |
|
|
Measurement range |
-20℃ ～ 60℃/-4℉～140℉ |
|
Accuracy |
±1.0℃/1.8℉ |
|
Measurement units |
℃/℉ |
|
Resolution |
0.1 |
|
Humidity |
|
|
Measurement range |
20～100%RH |
|
Accuracy |
35～80%RH:±5%RH，Others: ±7%RH |
|
Resolution |
0.1 |
|
Data update |
1 time/sec |
|
Maximum value |
MAX |
|
Minimum value |
MIN |
|
Average |
Average value for the latest 10 times measuring |
|
Data Hold |
HOLD |
|
Auto power off |
Automatically power off after approx. 15 minutes inactivity |
|
Power supply |

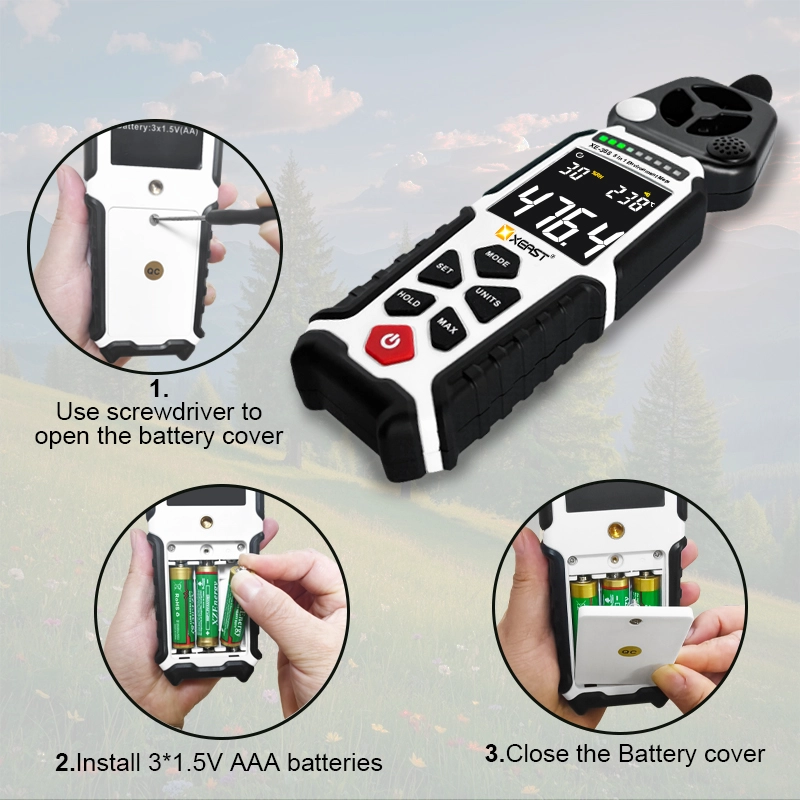

3*1.5V AAA or USB cable with type C connect |
|
Battery life |
About 30 hours |
|
Operating condition |
-20～60℃/-4～140℉，10％RH～75％RH |
|
Storage condition |
-20～60℃/-4～140℉，10％RH～75％RH |
|
Dimensions |
242×68×30mm |
|
Weight |
292g |
