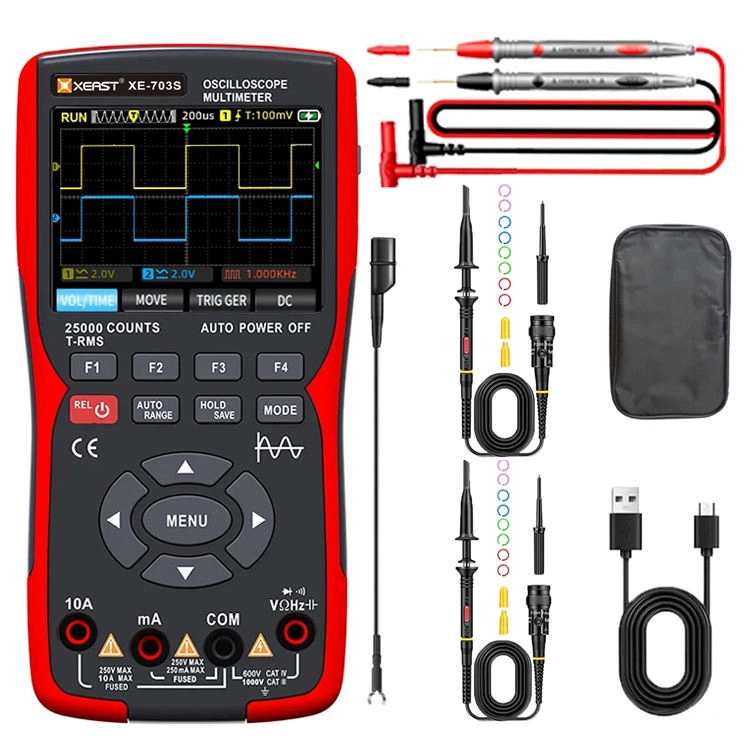

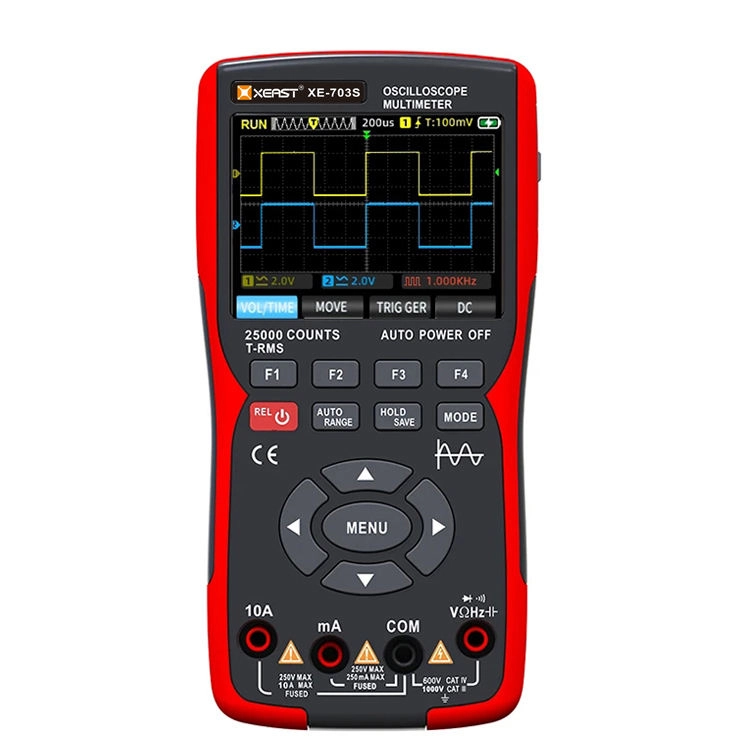

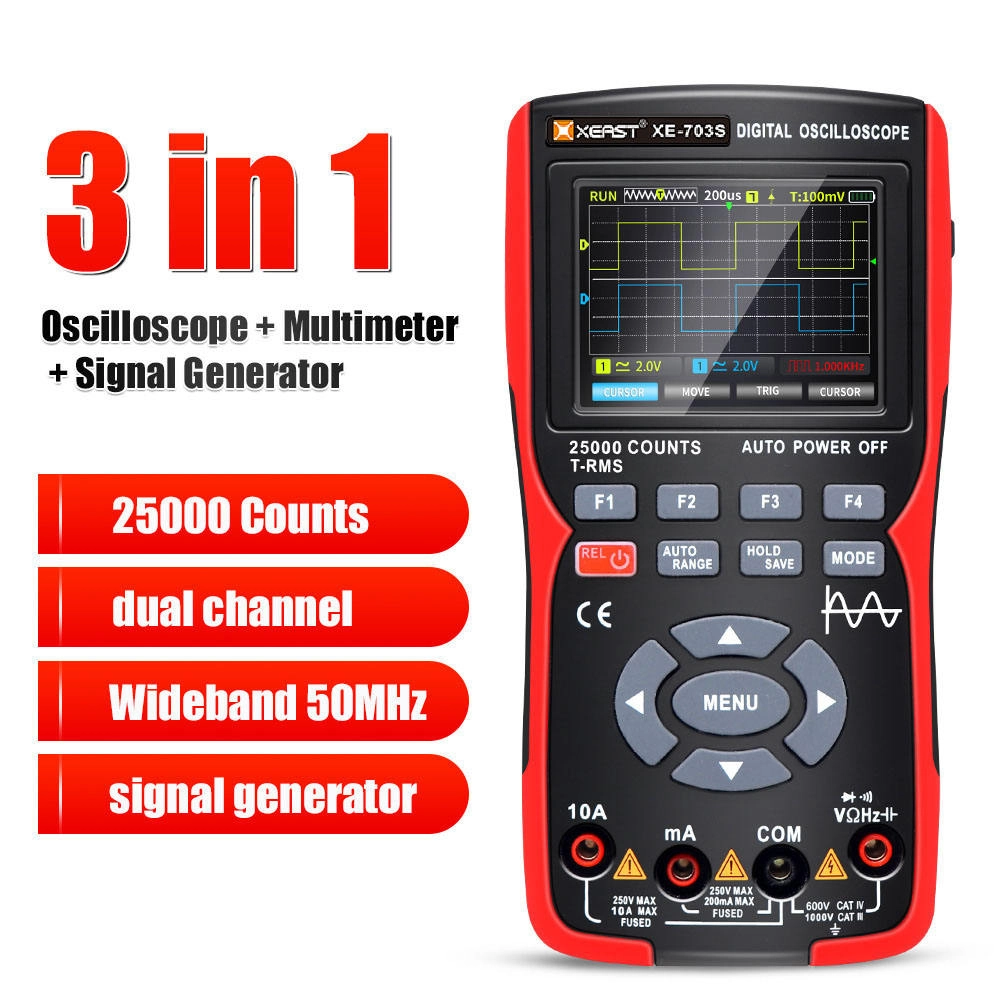

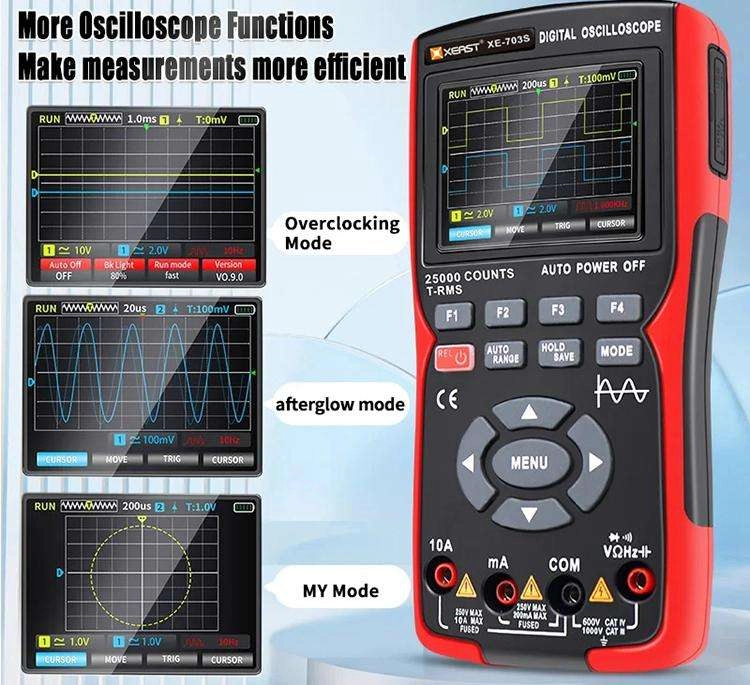

XEAST XE-703S 2-Channels 50MHz Oscilloscope 280MS Sampling Rate 3 1 Signal Generator Multimeter
- 1.Introduction

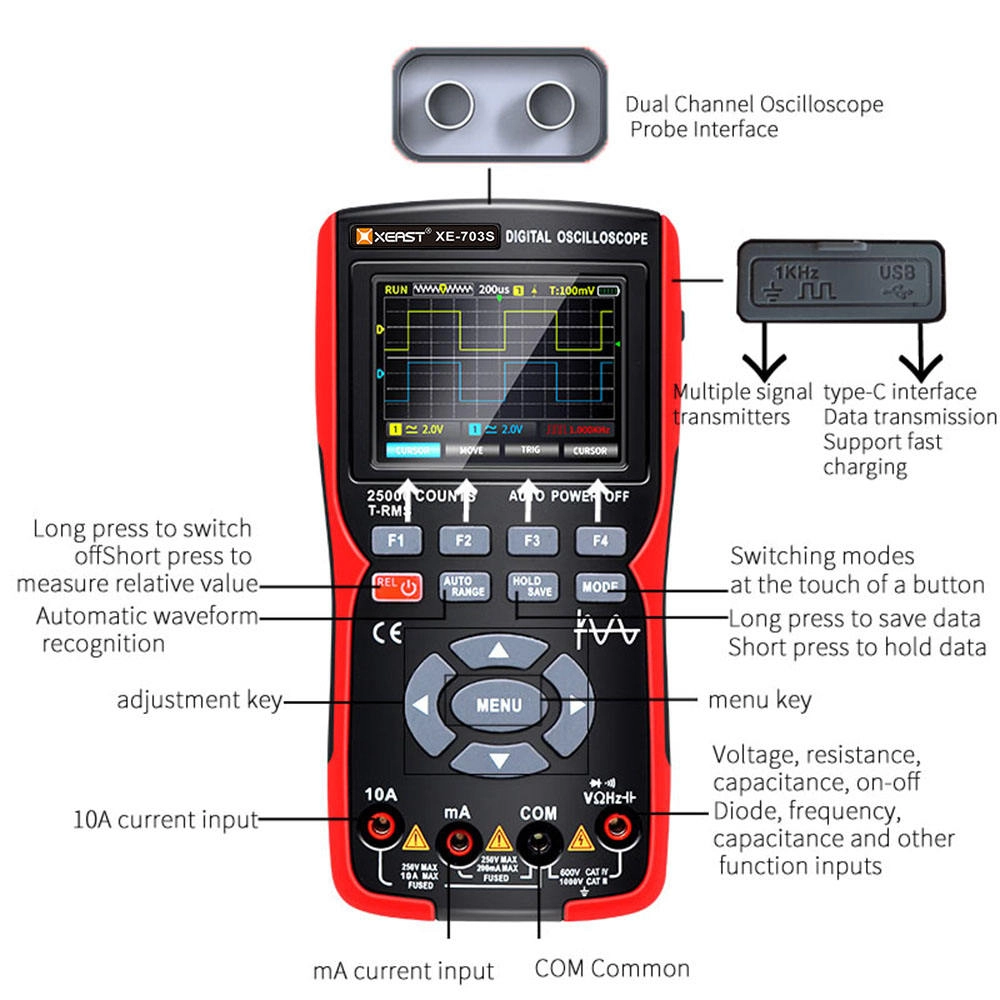

- XE-703S Three-mode design for a digital oscilloscope and multimeter, featuring one-button mode switching, automatic waveform
- acquisition, time base calibration, data storage, data export, language selection, shutdown time setting, adjustable
- backlight,data transmission port, signal output setting, and storage functions. Easy to operate, enhancing work efficiency. Widely
- used in automotive, industrial equipment, sensors, heavy electrical equipment, rectification, and low-voltage systems.
- 2.Features

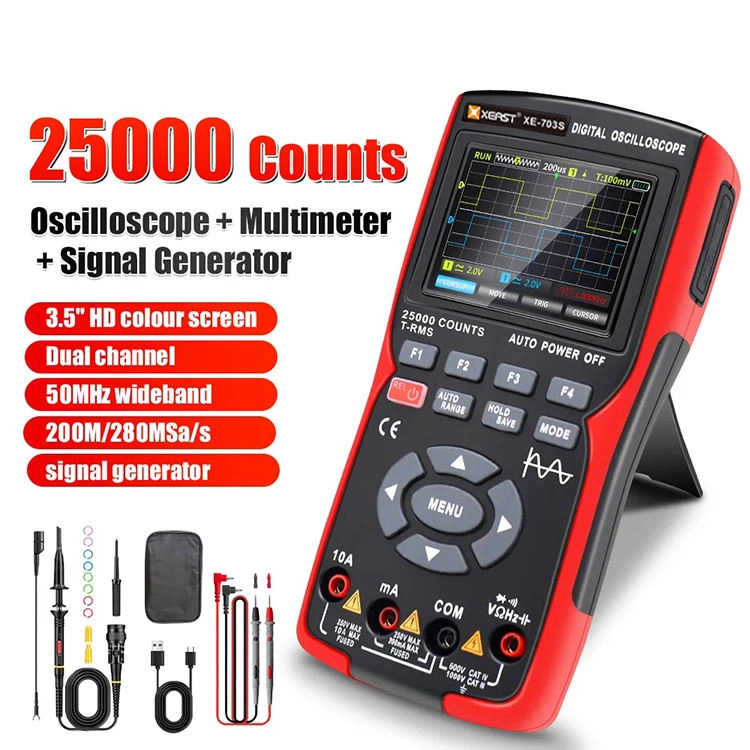

- * 3.5" IPS color LCD oscilloscope, 50MHz bandwith, 280MSa/s real-time sampling rate, auto-calibration function, memory
- function,etc.
- * 25000 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.
- * LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.
- * 50MHz bandwidth plus 18650 lithium battery charging experience super endurance
- * MODE key switches the mode of digital multimeter and oscilloscope
- * Waveform data storage and formatting,The tested data can be saved and transfered
- * Customize brightness adjustment and shutdown time Settings
- * Exported in the form of pictures, sampling rate 280Ma/s storage depth 64Kpts PC transmission
XEAST XE-703S 2-Channels 50MHz Oscilloscope 280MS Sampling Rate 3 1 Signal Generator Multimeter
Key attributes
| Sample rate | 200M/280MSa/s |
| type | Oscilloscope multimeter |
| customized support | OEM, ODM |
| warranty | 1 year |
| place of origin | Guangdong, China |
| model number | XE-703S |
| brand name | XEAST |
| Screen Size | 3.5 inch |
| Screen Resolution | 320*240 |
| Display | 25000 words |
| Bandwidth | 50MHz |
| Sample rate range | 200M/280MSa/s |
| Channels | 2 |
| Input coupling | AC/DC |
| Input resistance | 1MΩ,@16pf |
| Probe attenuation | X1, X10 |
| Max input voltage | x1<150V, x10 <300V (DC+AC peak) |
Company Profile
Shenzhen XEAST Technology Co., Ltd.(XEAST TECHNOLOGY CO.,LIMITED) is a leading supplier of Test & Measurement Instruments in China,such as Laser Level,Thermal Imaging Camera,Laser Distance Meter,Air Quality Tester,Sound level Meter,Infrared Thermometer,Anemometer,Digital Multimeter,Digital Clamp Meter and and so on.
2015,our own brand-- XEAST kick off,our factory passed certificate of ISO9000:2000 Quality Control System,and provides CE, FCC and POHS-marked with XEAST brand to customers outside the meanland and in over 100 countries across America, Europe and Asia. With the advantage of high-grade products quality, competitive price and marvelous after-sales service, Laesent international enjoys great reputation at home and abroad.
The concept of Customer first, serving foremost Customers is the most important asset of our company, continuously trying to improve the products and service and devoting to responding to customers appeals and satisfaction timely so as to keep our customers loyalty and attract more potential customers,New century, new journey, XEAST is sure to keep pace with the advance of the times and have a free mind, build a strong teamwork to compete the challenges of new global times. XEAST sincerely expects to establish a goodwill and business relation with business people all of the world on the basis of mutual equality and benefit. We welcome all inquiries, whether for small or large transactions, knowing that step by step, together, we could build a better tomorrow!
