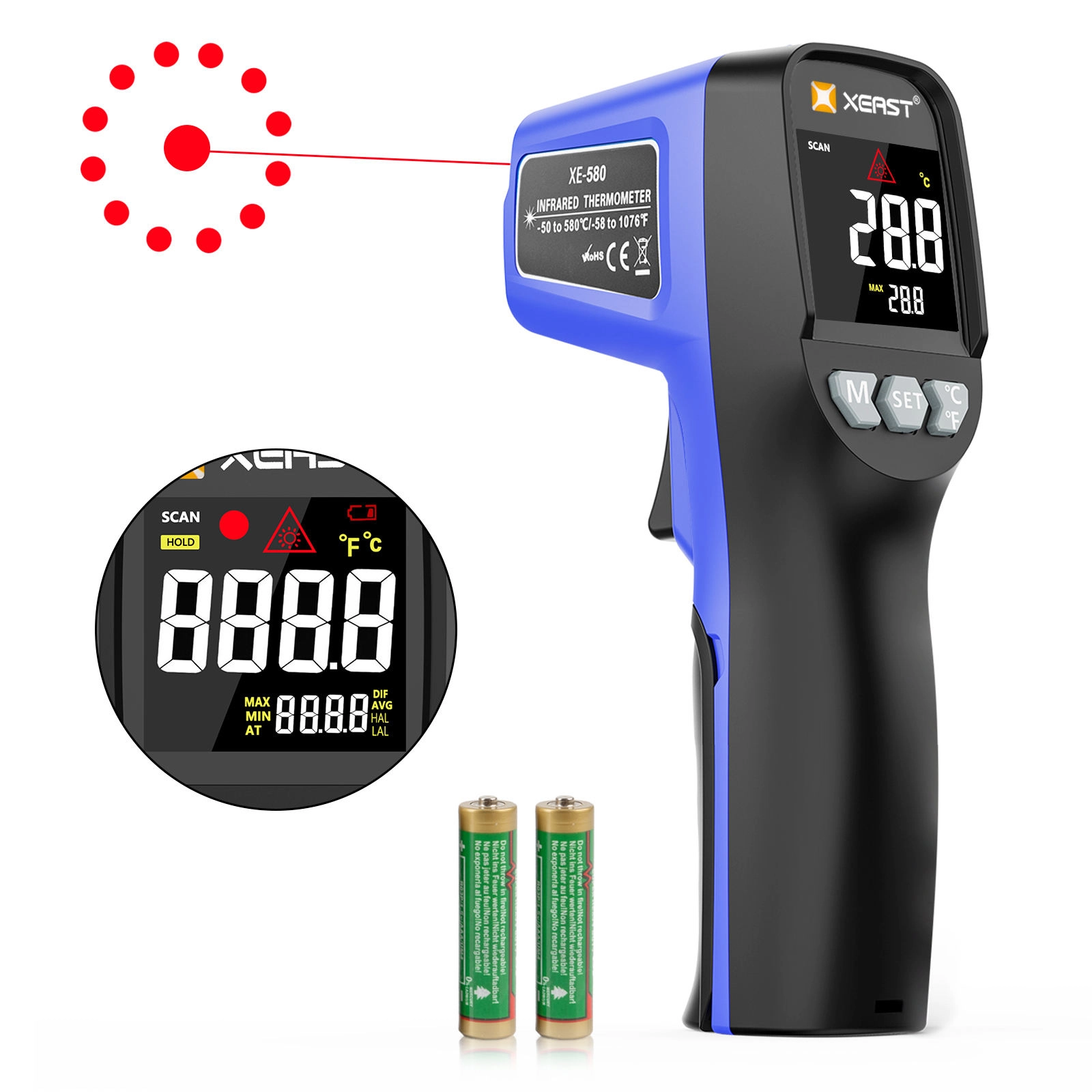

Professional Non-contact Infrared Thermometer -50~580 Range LCD Light Laser Aiming Digital Thermometer OEM/ODM Customizable
- Introduction
- Congratulations on purchasing our professional non-contact infrared thermometer. This product is a professional, hand-held meter for non-contact Infrared temperature measurement that is simple to use, highly accurate, and has a wide temperature range.It can be used to measure the surface temperature of hard-to-reach or moving objects.
- Features

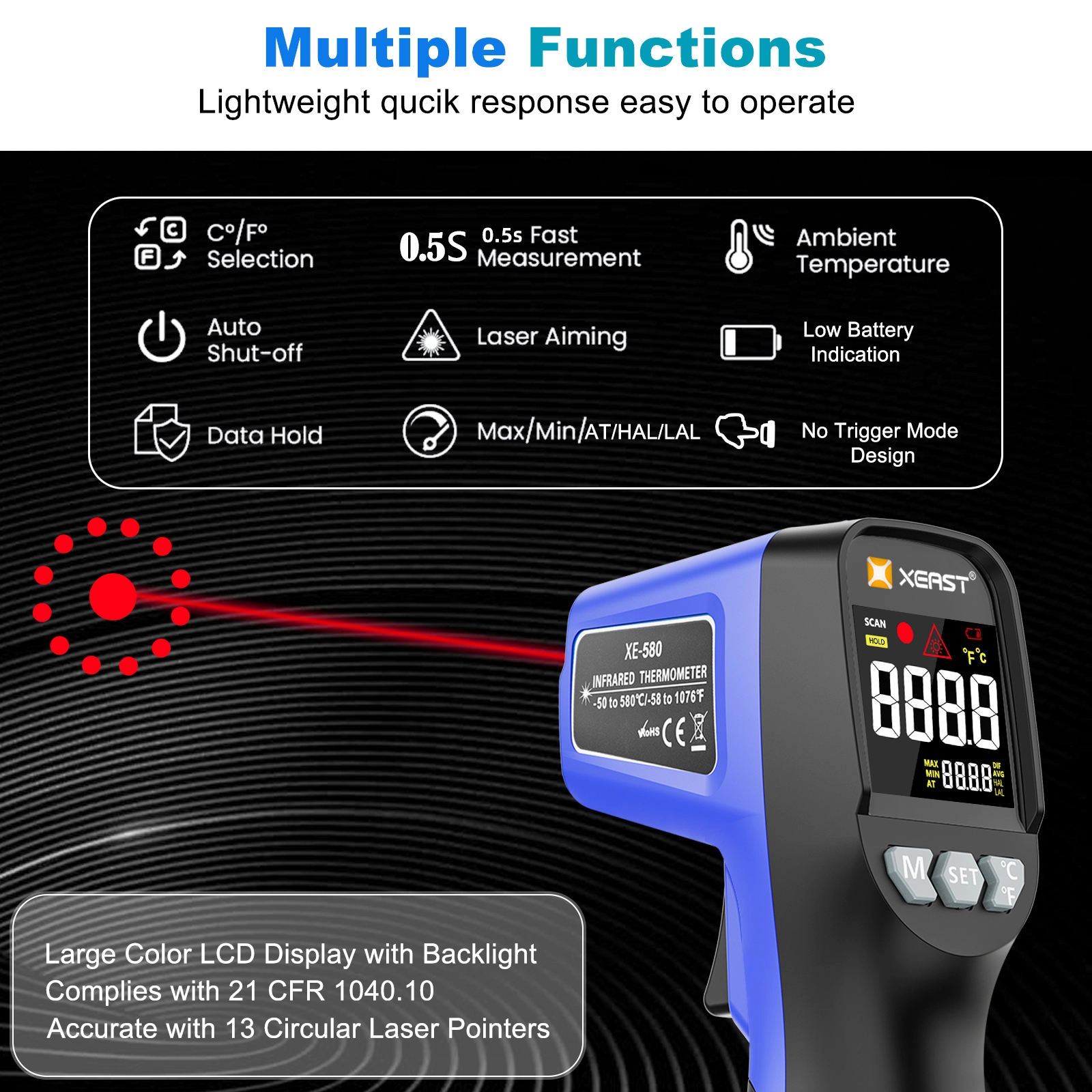

- Accurate and fast non-contact measurements;Circular laser pointers increase the target accuracy▪MAX-MIN-AT- HAL-LALmode;Temperature alarm ▪ Large color LCD display with backlight;°C / °F selection ▪ Low power indication;Data hold ▪ Auto power off.
- Safety
- Use with extreme caution when the laser beam is turned on.
- Do not point the beam towards eye of anyone or any animals.
- Do not allow the beam to strike the eye from a reflective surface.
- Do not use the laser near explosive gases.
- Distance & Spot Size
- When the distance (D) between the thermometer and the object increases, the light spot (S) increases. The distance to the spot ratios are shown below in the field of view diagram.
- Notes:
- Accuracy can be ensured while the temperature is at 18℃ to 28℃ (64℉~82℉) and humidity is less than 80 % RH.
- Make sure the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size.
Professional Non-contact Infrared Thermometer -50~580 Range LCD Light Laser Aiming Digital Thermometer OEM/ODM Customizable
Specifications
|
Model Number |
XE-580 |
|
Color |
Blue |
|
Temp. range(IR) |
-50℃~580℃ / -58℉~1076℉ |
|
D:S |
12:1 |
|
IR Accuracy |
±3℃/5.4℉(<0℃/32℉); |
|
＞ 0℃:±2.0% or ±2.0/3.6℉ whichever is greater |
|
|
Emissivity |
Adjustable from 0.1~1.0 |
|
Resolution |
0.1 |
|
Response Time |
<500ms |
|
Spectral Response |
8~14um |
|
Diode Laser |
Output＜1mW,630~670nm, class 2(Ⅱ)laser |
|
MAX |
The maximum value in this measurement |
|
MIN |
The minimum value in this measurement |
|
AT |
Ambient temperature measured |
|
HAL |
High Alarm , if the measured value exceeds the set high alarm value, the red alarm symbol will be appeared on the screen along with beeper sound to warn the user |
|
LAL |
Low alarm , if the measured value is lower than the set low alarm value, the red alarm symbol will be appeared on the screen along with beeper sound to warn the user |
|
Auto Power Off |
Meter shuts off automatically after around 25 second inactivity |
|
Storage Temp |
-20℃~70℃ / -4℉ to 140℉ |
|
Operation Temp. |
0℃~ 50℃ / 32℉ to 122℉ |
|
Relative Humidity |
Operating:10 to 95%RH Storage:<80%RH |
|
Power Supply |
1.5V"AA"x2 battery(Excluding batteries) |
