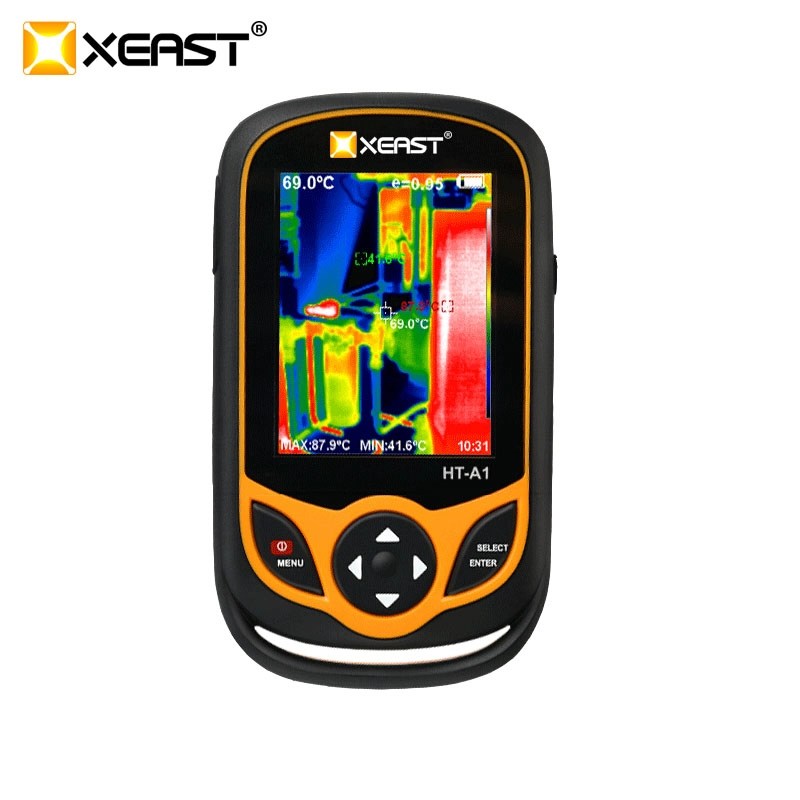

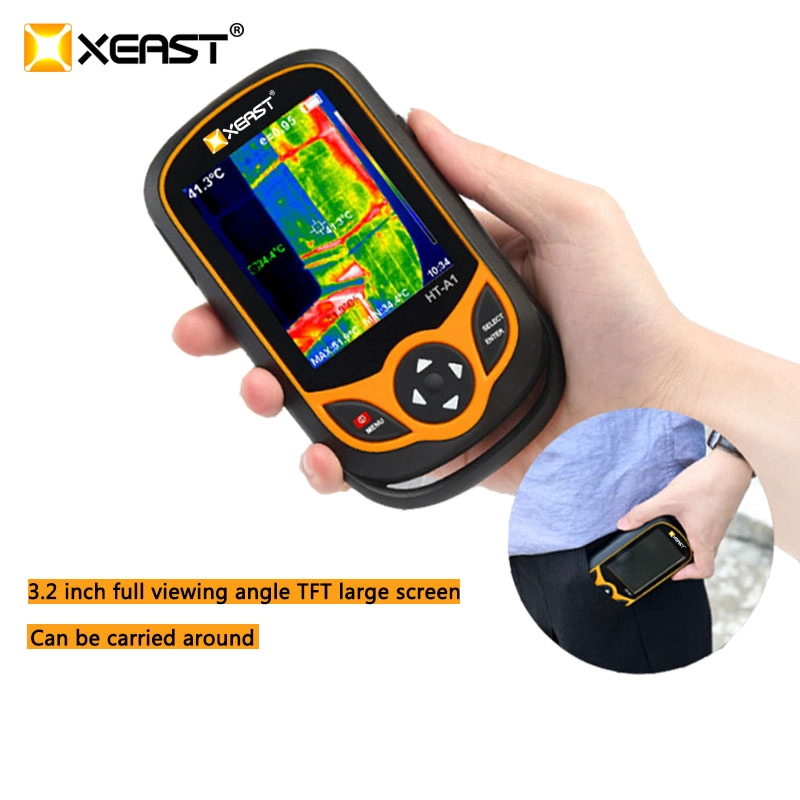

HT-A1 3.2 inch Full View TFT Screen Infrared Imaging Camera Thermal Imager for Outdoor Hunting

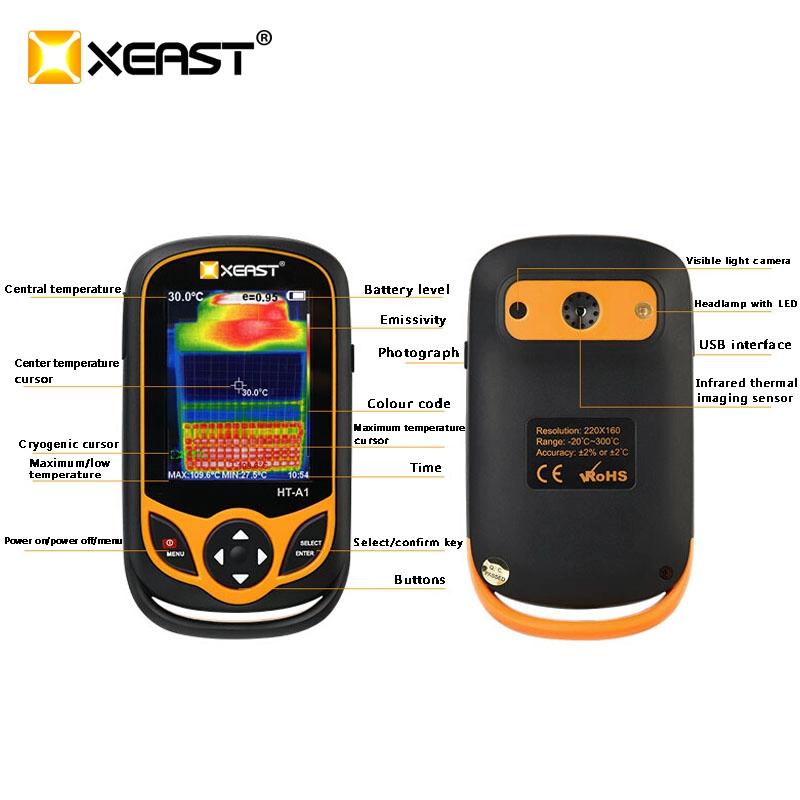

- The following major functions increase the product’s accuracy and usability:
- 1.The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
- 2 .The highest temperature and lowest temperature cursor may guide the users to the areas with highest and lowest temperature of the thermal images.
- 3.The selectable color palette.
Specification to our high resolutions of Thermal Imager HT-A1
|
Display |
3.2 inch full view TFT display |
|
Infrared image Resolution |
220*160 |
|
Total Pixel |
35,200 pixels |
|
Visible image resolution |
0.3 mega pixels. |
|
Thermal sensitivity |
0.07℃ |
|
Temperature range |
-20℃ to 300℃(-4℉ to 572℉) |
|
Measuring Accuracy |
±2% or ±2℃(±4℉) |
|
FOV/Shortest Focal Length |
35°x26°/4.0mm |
|
Palette |
iron red, cool color, white thermal, black thermal, rainbow |
|
Wavelength Range: |
8-14μm |
|
Emissivity |
0.1-10.0 Adjustable |
|
Image Frequency |
9 HZ |
|
Focus Mode |
Fixed |
|
Vision Option |
full infrared and full vision Visible image with 25% step length |
|
Image Storage |
SD card(4G) |
|
File Format |
JPG |
|
Battery Supply |
built-in rechargeable battery |
|
USB |
Micro USB2.0 |
|
Shutdown time |
5 minutes /20 minutes / non automatic shutdown |
|
Authentication |
CE, RoHS |
|
Operating Temperature |
-5℃ to 45℃ |
|
Storage Temperature |
-20℃ to 60℃ |
|
Relative Humidity |
10%RH to 80%RH |
|
Item Size |
140*80*28mm/5.51*3.14*1.1'' |
|
Item Weight |
450g |
|
Package Includes |
1 x infrared temperature detector 1 x cable |

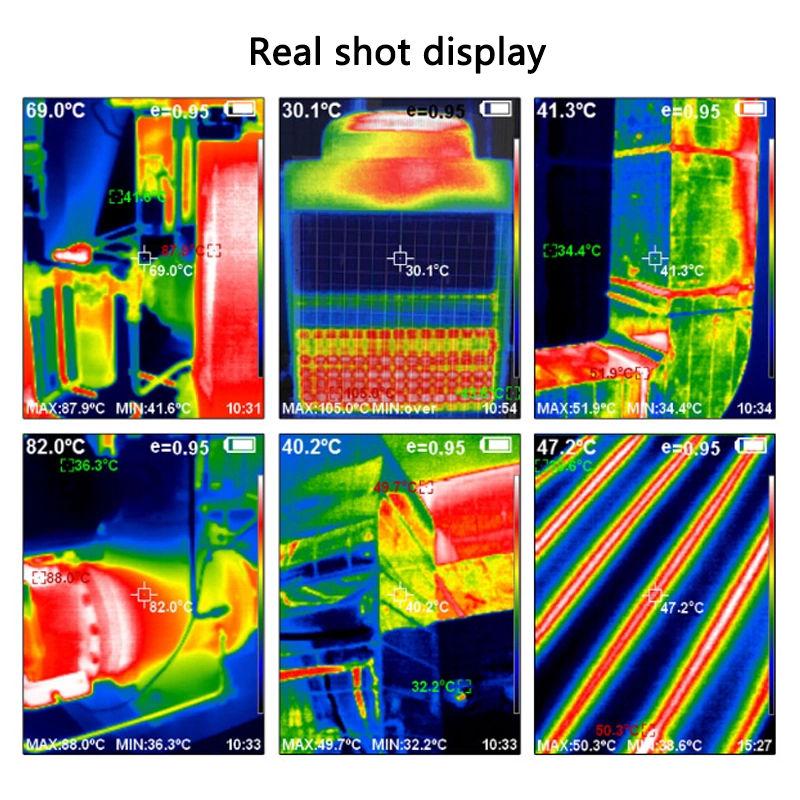

This product is an infrared imaging camera that integrates surface temperature measurement and real-time thermal image. The traditional inferred thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. The potential problems may be displayed on color display screen clearly. Moreover, the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object.
In order to increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print. The supported operating system through verification includes: win XP, win7, win 8, win10, Apple system. It is suggested to use the attached USB cable or USB cable with higher quality.
The product can be used in fields of medical treatment, fire fighting,archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc and is the ideal selection for electrician and maintenance
personnel and technicians and can be used to find the problem area quickly.

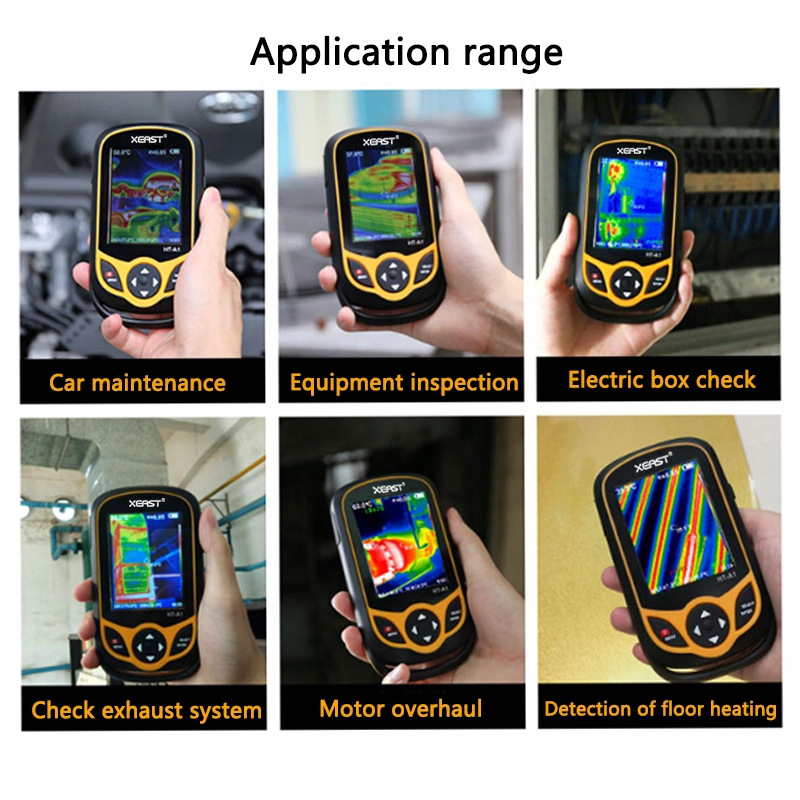

The Application to China Manufacturer of Infrared Imaging Camera HT-A1

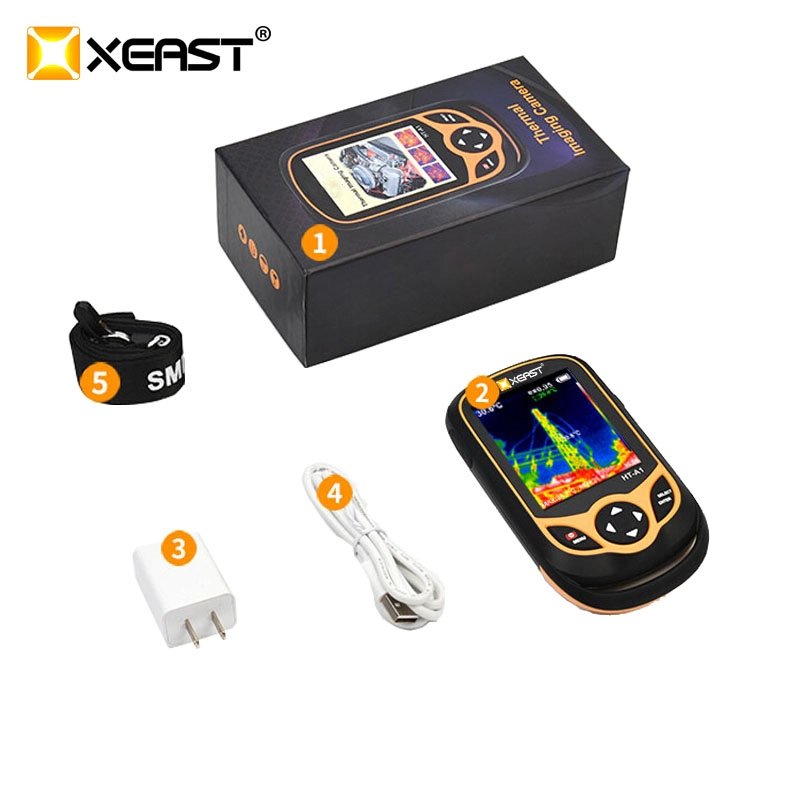

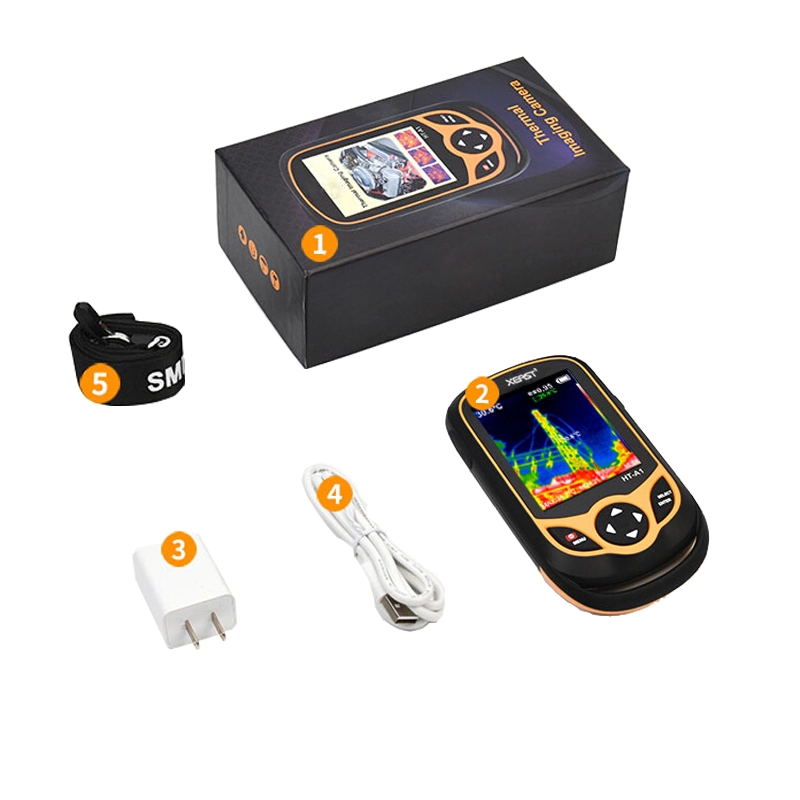

The Package to Thermal Imager of HT-A1
1). Terms of Payment: We accept T/T, L/C,Paypal,MoneyGram and Western Union.
30% deposit and other 70% balance before shipment.
2). Terms of Shipping:
It depends on clients order quantity and your special request.We oftern adopt Express(DHL,TNT,UPS,FEDEX ,EMS,SPSR,139 express and so on),LCL,FCL
Items will be careful checking before shipment,and we will update the delivery status timely after the goods are sent out.
