XEAST Thermal Imaging Camera XE-29 2.8" TFT Color Display 120*90 Resolution Thermal Imager for Detecting Leaks in Pipes and Wall

  • *TFT color LED display

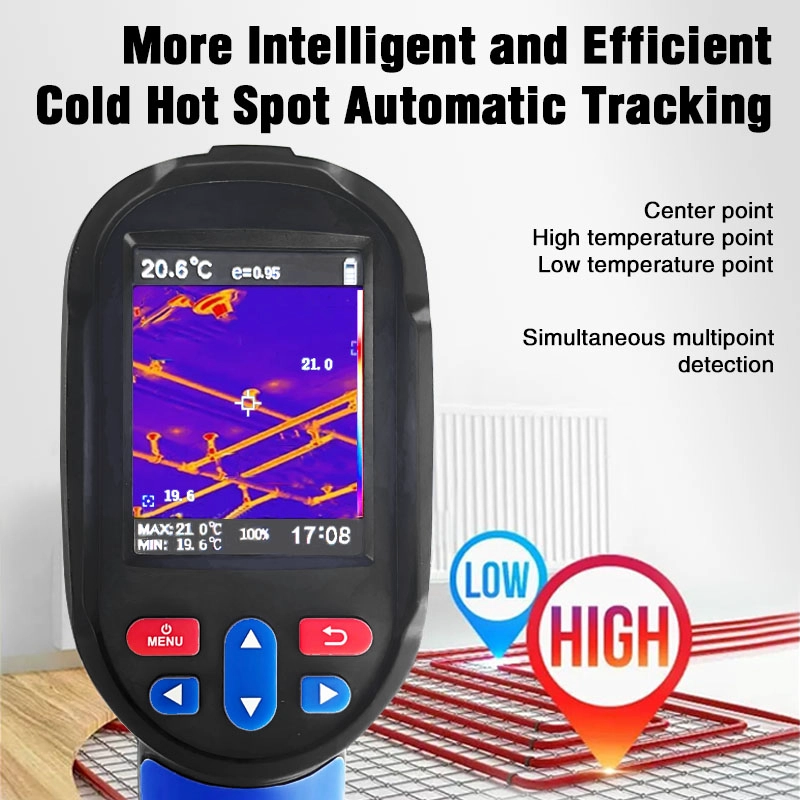

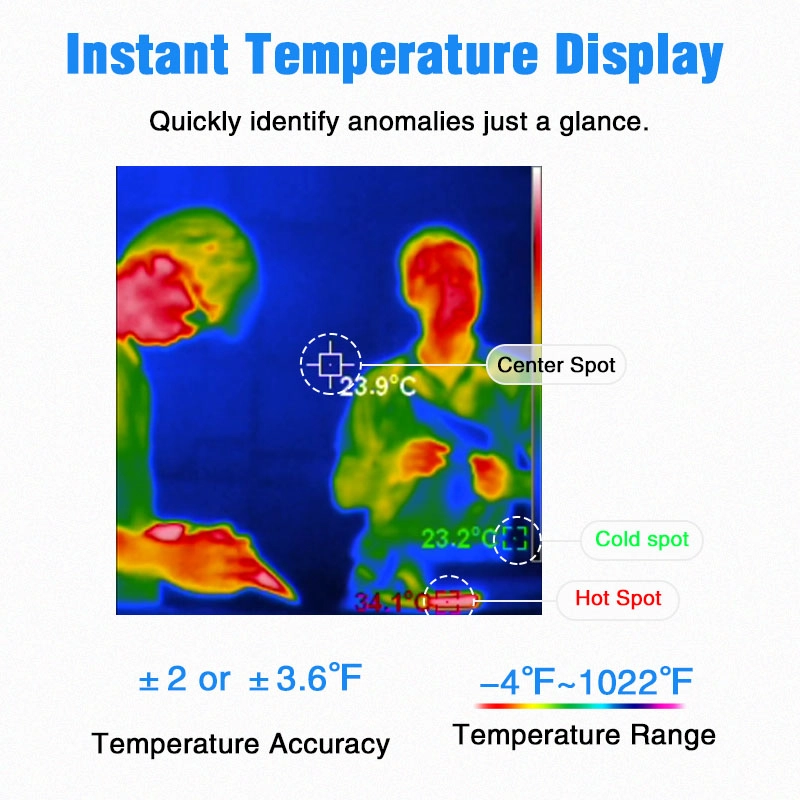

  • *Center Point/hot/cold point tracking
  • *The cursor indicate Max/Min /Center value Micro USB image output

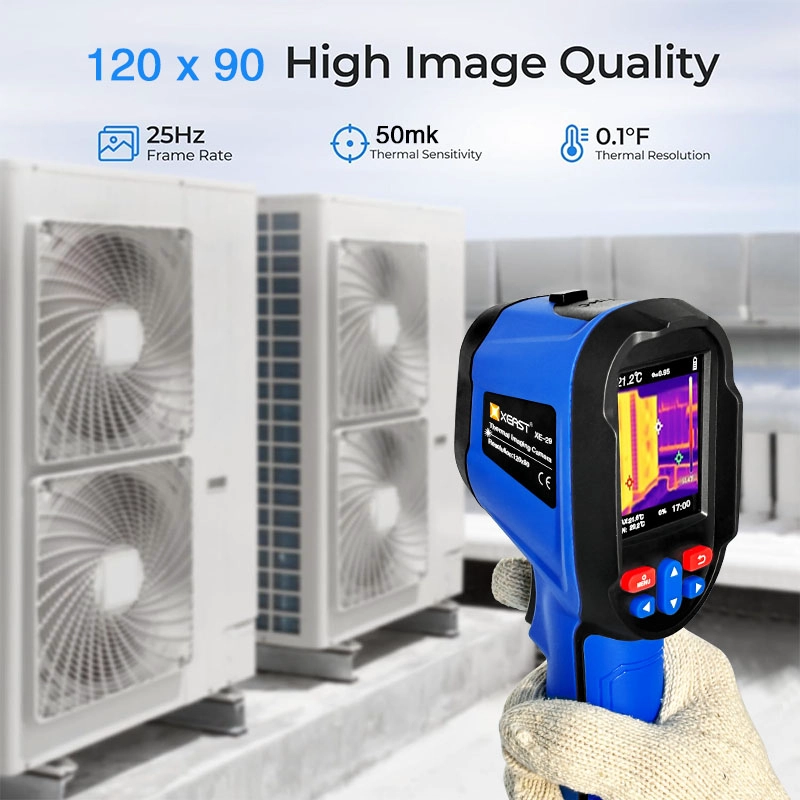

  • *High frame rate refresh image at 25HZ
  • *Adjustable emissivity from 0.1 to 1.0
  • *Optional color palette for double light fusion
  • *Rechargeable lithium battery
  • Image Export: The captured and saved images can be viewed and exported via a Micro USB connection to a computer.

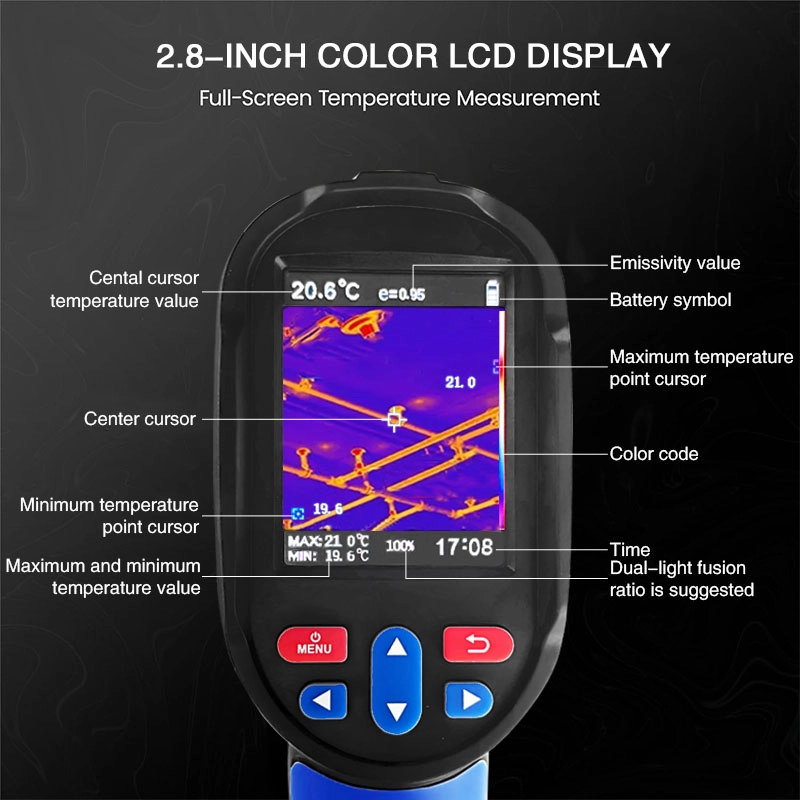

  • Color scale: Used to indicate the relative temperature in the field of view from low to high corresponding to the color

XEAST Thermal Imaging Camera XE-29 2.8" TFT Color Display 120*90 Resolution Thermal Imager for Detecting Leaks in Pipes and Wall


Specifications

Display screen
2.8" TFT color display,240*320 pixels
Visible Light Image Resolution
300,000 pixels
Lighting supplement
LED light supplement
Image display mode
Infrared, visible and dual light fusion
Pixel size
12uF
NETD
≤50mK @25°C,@F/1.1
Frame rate of thermal im
≤25HZ
Focal lengthages
3.2mm
Emissivity
Adjustable from 0.01 to 1.00
Wavelength coverage
8μm to 14μm

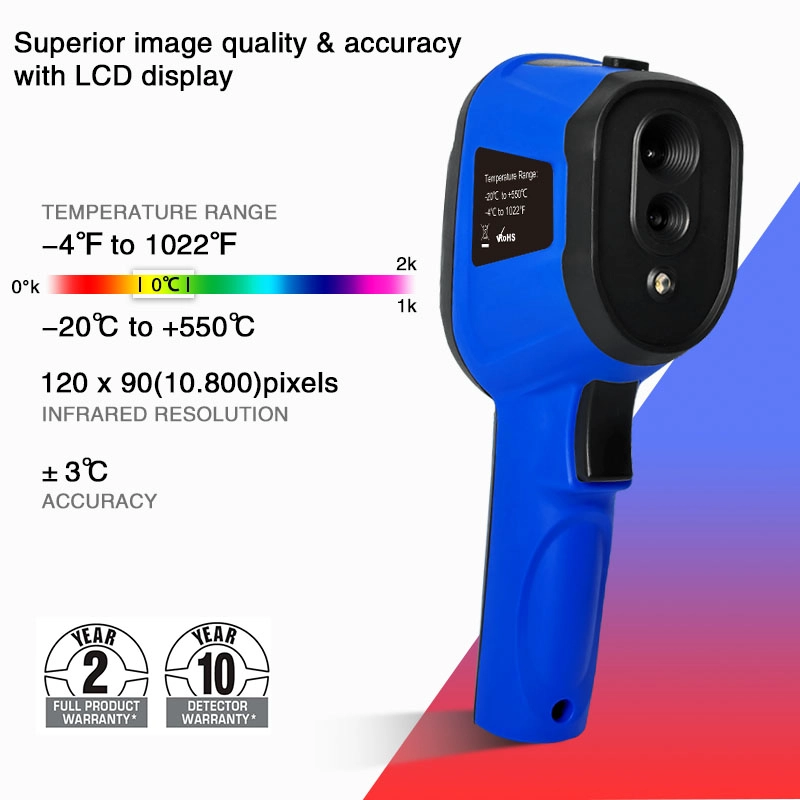

Temperature range
-20°℃ to+550℃ (-4°Fto1022°F)
Accuracy
±2% or reading ±2°C/3.6°F

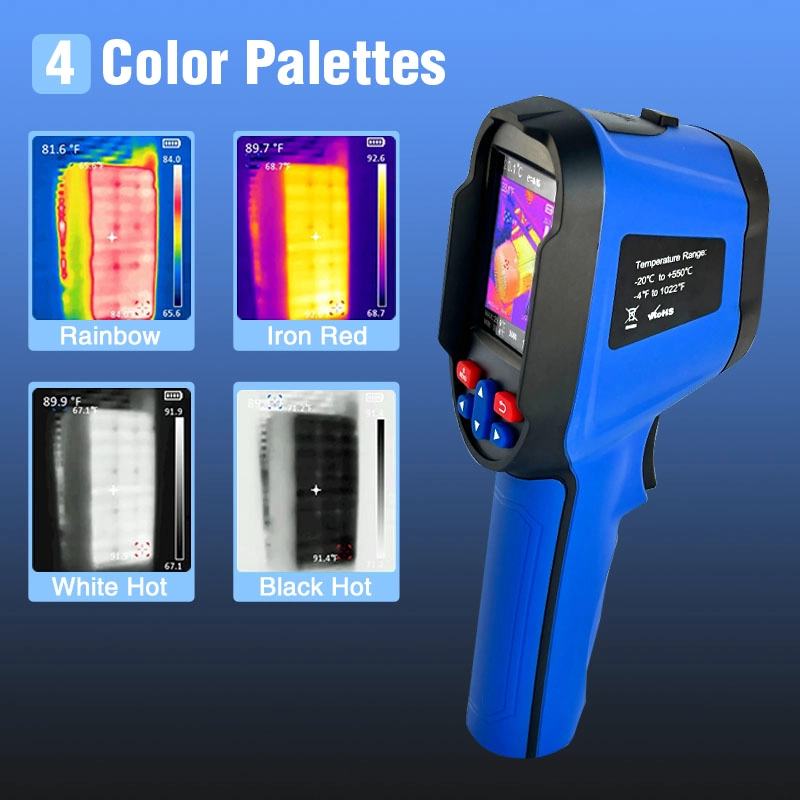

Color palette
Rainbow, iron oxidered, cold color,black & white, white &black
Storage capacity
4G Built-in 4G
Image PC offline analysis
N/A
support
File format
JPG
JPG/MP4
Export Memory Method
Micro USB cable connection PC export
Language
English,Chinese,Italian,German
Battery
18650 battery (200mA) Removable
Automatic power-off
Selectable: 5 minutes/20 minutes/ not power off automatically
Work temperature and humidity
 -10°℃ to 50℃C / 14°F to 122°F : 10%RH to 85%RH
Storage
-20°℃ to 60°℃/-4°F to 140°F; 10%RH to 85%RH
