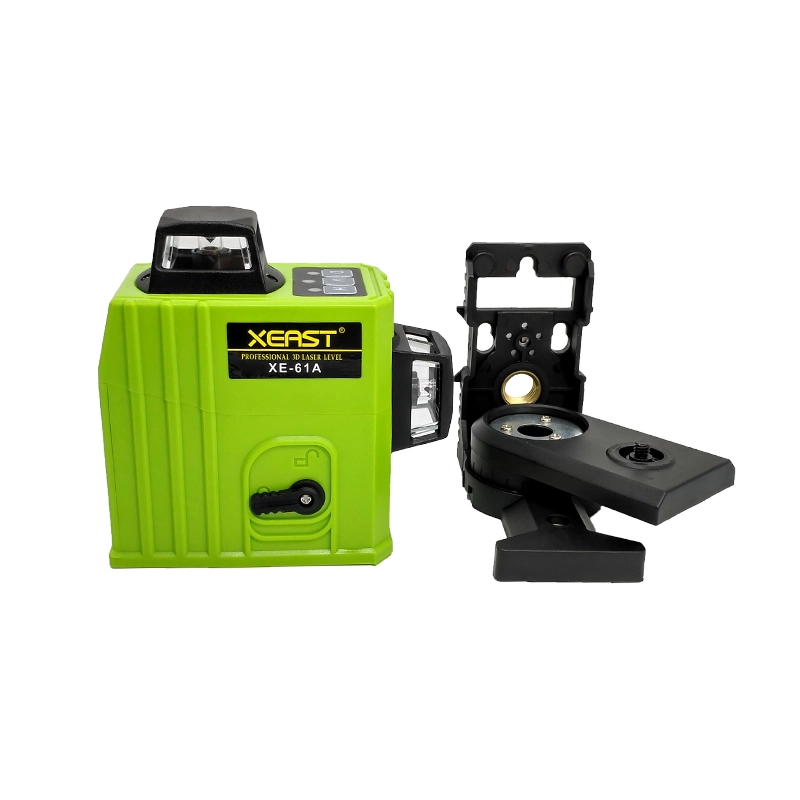

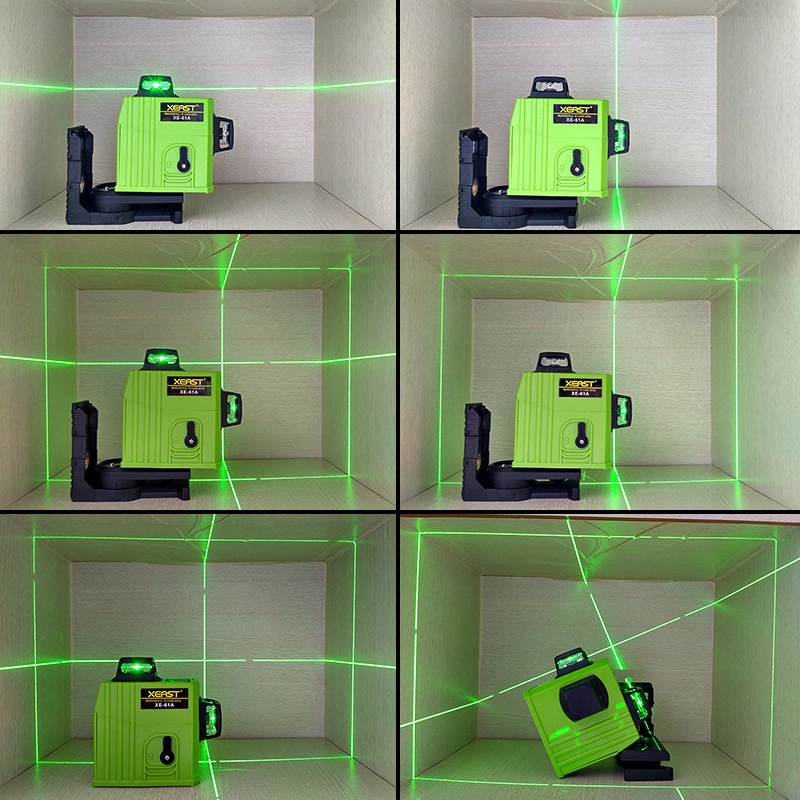

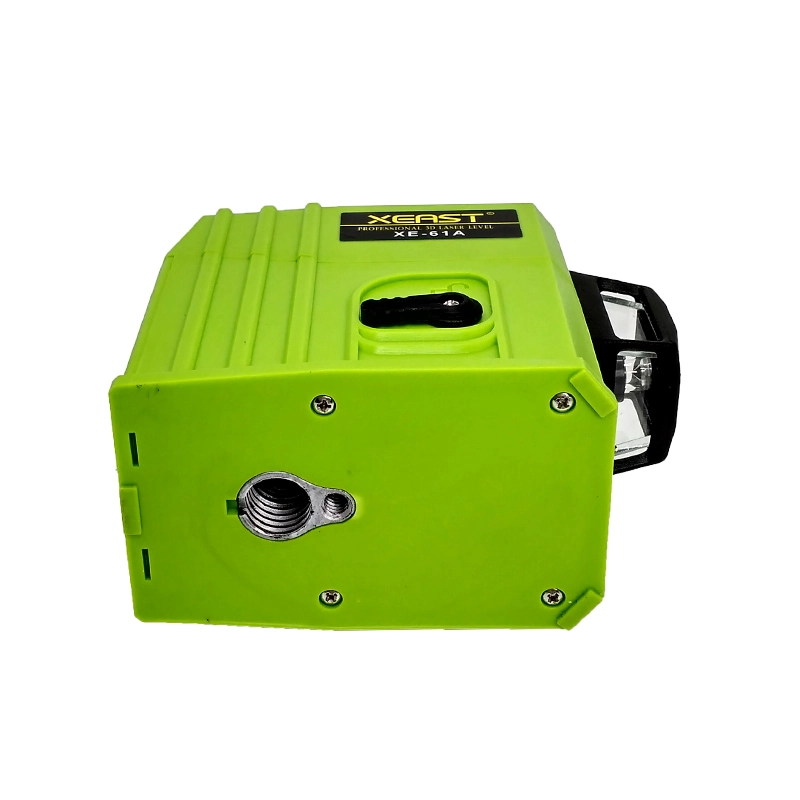

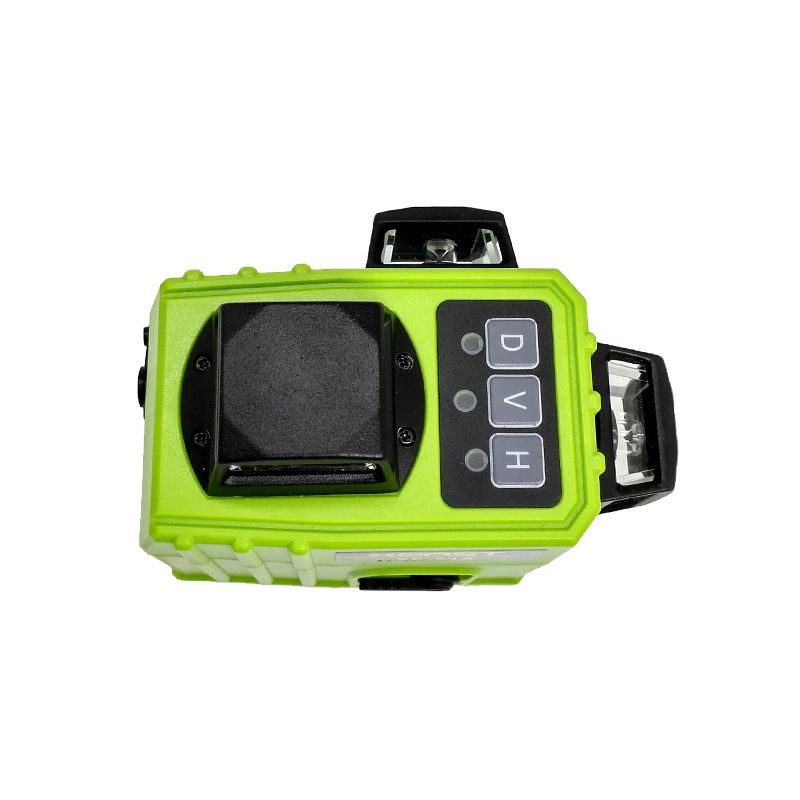

XEAST XE-61A 12 line laser level 360 Self-leveling Cross Line 3D Laser Level Green mode2
- Working range: 20-50 m
- Type of laser: 515 nm green
- Leveling accuracy: ± 1mm / 5m
- Laser class: Ⅱ, <1mw
- Self-leveling range,
- typically: ± 3 °
- Working power: 2x 3.7V 2000mAh 18650 battery
- EU AC power supply
- Duration of leveling, generally: <4 s
- Tilt function: YES (not flashing)
- Precision: adjustable
- Use receiver: YES (range 50 m)
- Operating temperature: -10C ... + 40C
- Storage temperature: -20C ... + 70C
- Dimensions: 130x90x130mm
- Weight: 0.65 kg
Function
| Field of work | 20-50m | Type of laser | 660nm, 100mw / 532nm, 30mw |
| Leveling accuracy | 1 mm ± 5m | Laser class | Ⅱ, & lt; 1mw |
| Self-leveling range, generally | ± 3 ° | Work power |
3.7 V 2000 mAh lithium battery
3 AA batteries
EU AC power supply
|
| Duration of leveling, typically | & Amp; lt; 4s | Tilt function | YES (no blink of an eye) |
| Precision | Adjustable | Use the receiver | YES (range 50 m) |
| Operating temperature | -10C ... + 40C | Weight | 0.62kg |
| Storage temperature | -20C ... + 70C | Dimension | 130x90x130mm |
| Relative humidity, max | 90% | Tripot mount | 1/4 "5/8" |
| Waterproof grade | IP: 54 | Working time | 8 hours |
| Warranty service | One year warranty | Service center | China and Moscow |

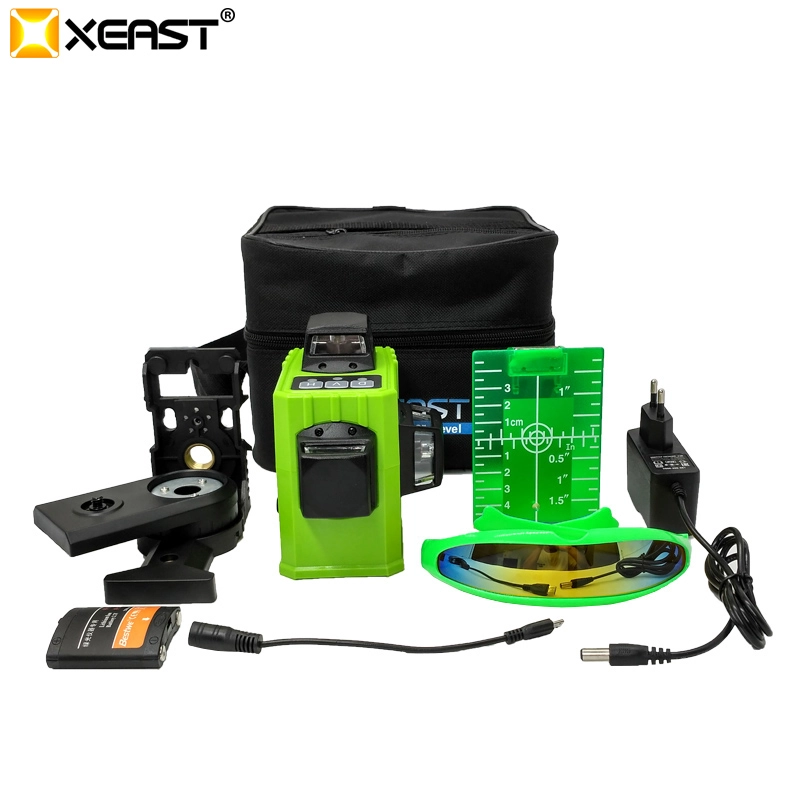

| Package |
Soft EVA case |
Package Included |
1 laser level
1 x bracket
1 x bag
1 x charge
1 x lithium battery
1 x Target
1 x Goggle
|
1). Payment terms: we accept T / T, L / C, Paypal, MoneyGram and Western Union.
30% deposit and other 70% balance before shipment.
2). Shipping terms:
It depends on the order quantity of the customers and the special request. We adopt Express (DHL, TNT, UPS, FEDEX, EMS, SPSR, 139 express, etc.), LCL, FCL
3). The items will be checked carefully before shipment and we will update the delivery status in time after sending the goods.
