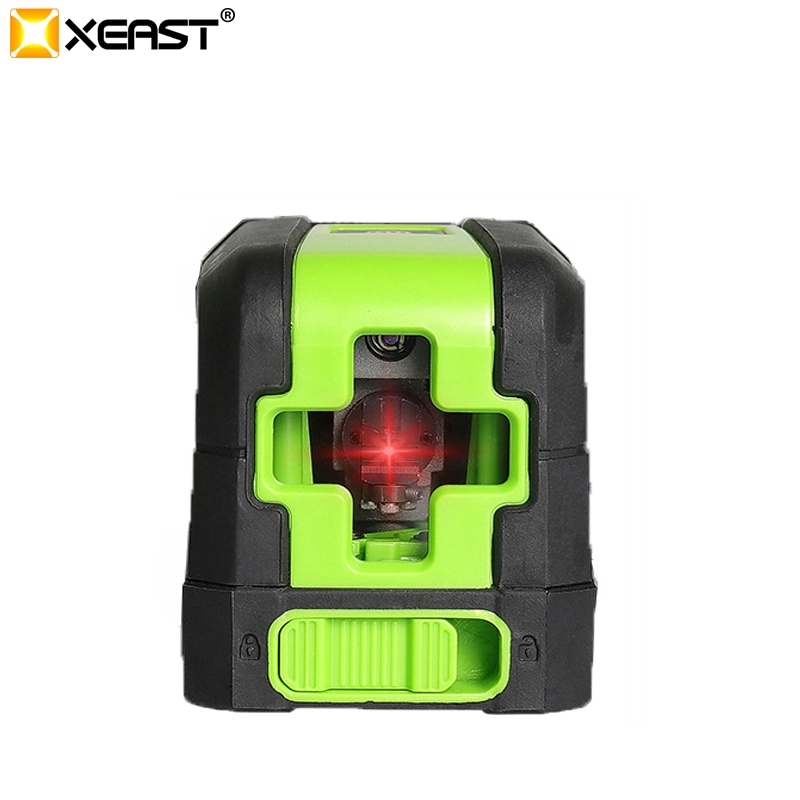

XEAST MINI XE-M02 2 lines 1V1H Red Laser Level Meter Tool
- Set the instrument on the tripod or on a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube turns off automatically (or if an audible alarm sounds).
- Turn the knob clockwise to open the instrument, emitting a laser beam
- Rotate the instrument, the laser beam towards the objectives.
- Gently adjust the knob, find the orientation of the job.
- When the work is finished, turn the switch knob counterclockwise, turn off the instrument.
- With the designed light point, provide practicality for construction.

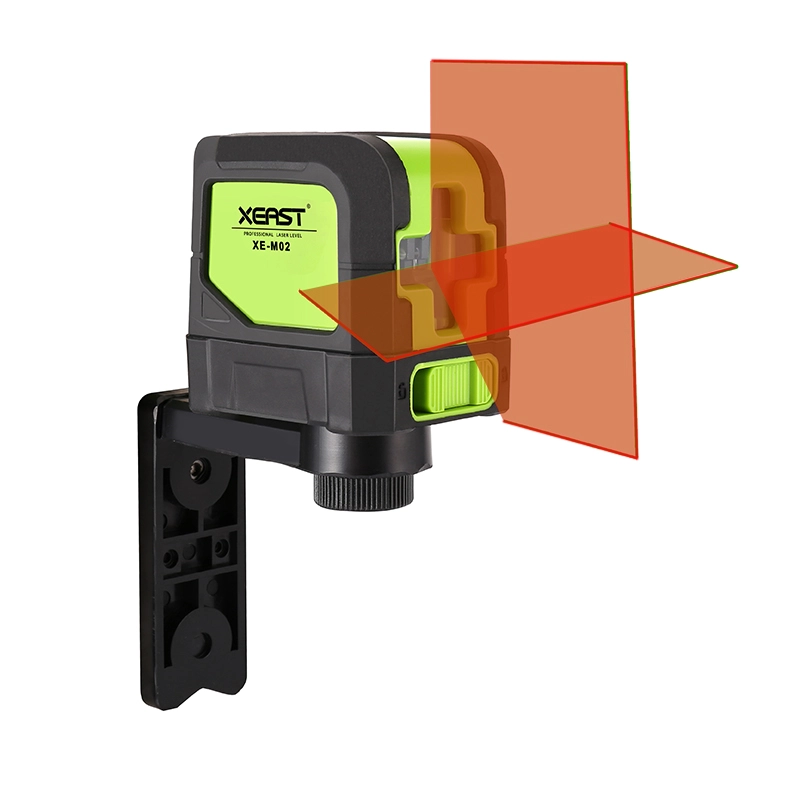

Two-line laser level 2 lines,mini red laser level ,cross laser
| Model number | XE-M02 |
| gender | 1V1H |
| Expanded angle | H110 ° / V110 ° |
| Laser class | Class 2 |
| Source of light | Red light 20mW |
| Laser wavelength | 635nm |
| H / V precision | 3mm ± / 10m |
| Self-leveling range | 4 ° ± 1 ° |
| Self-leveling time | ≤3s |
| Working distance (line) | 30 m, ≥40 m with detector |
| Operating time | & Amp; gt; 10h (all active lasers) |

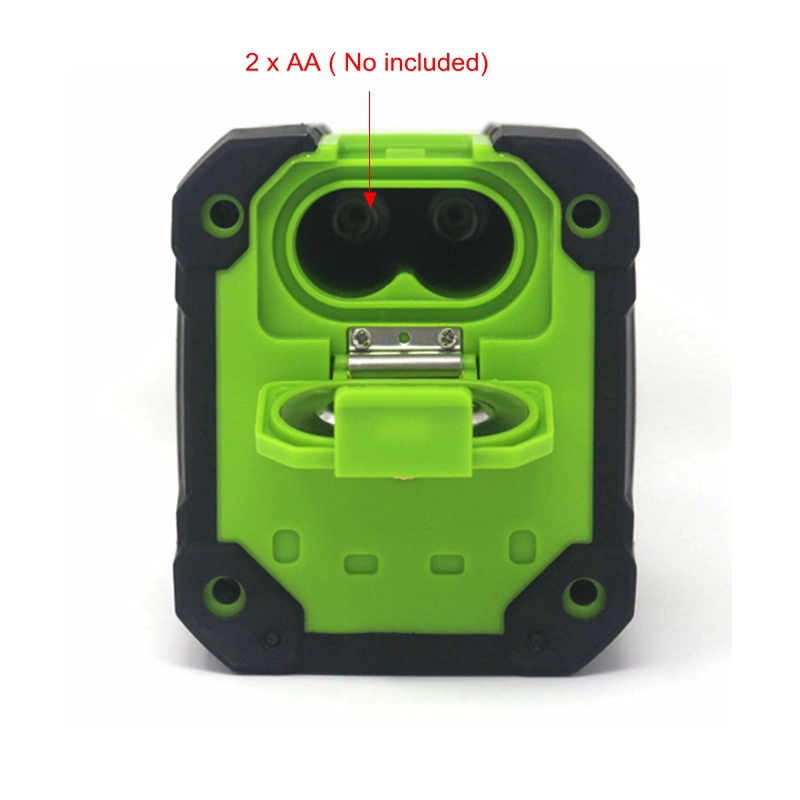

| Source of power | 2 * AA (LR6) |
| IP rating | IP54 |
| Temperature operating range | From -10 ° C to 50 ° C |
| Storage temperature range | From -20 ° C to 70 ° C |
| Support size | 1/4 '' - 20 |
| Weight | 0.7KG |
The red laser 2 lines, self-leveling Laser levels 20m 30m 2 Cross Line Beam laser level Measure tool

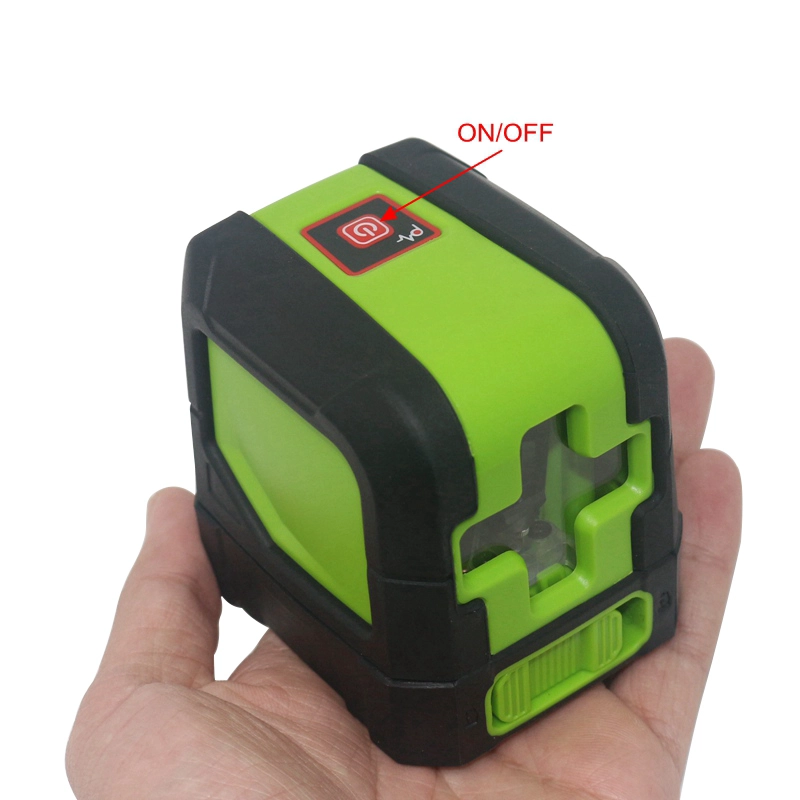

the power switch for mini 2 lines laser level

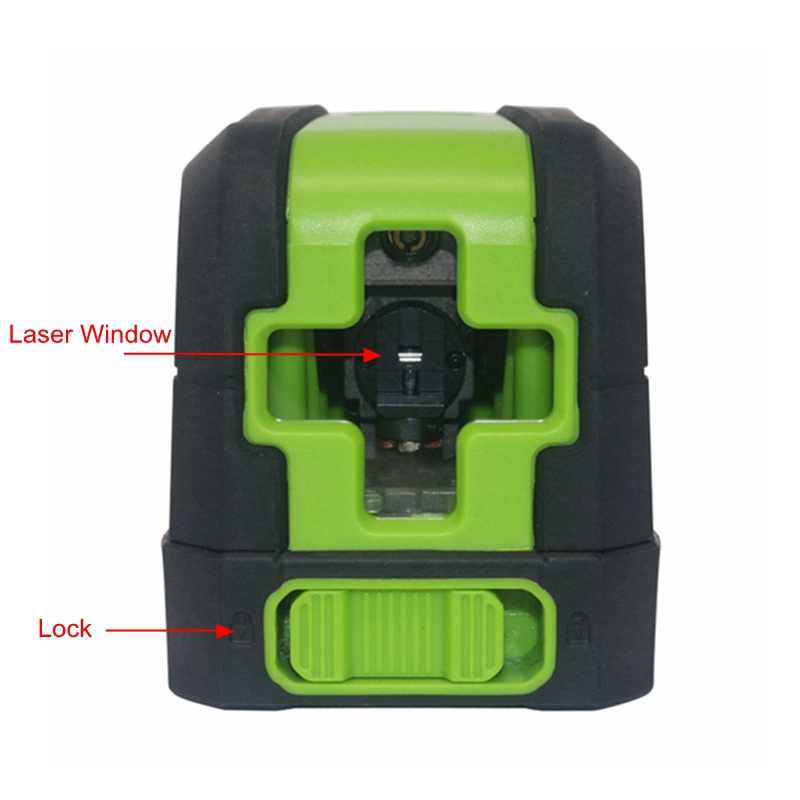

Laser window and lock switch, please turn to unlocked when using.

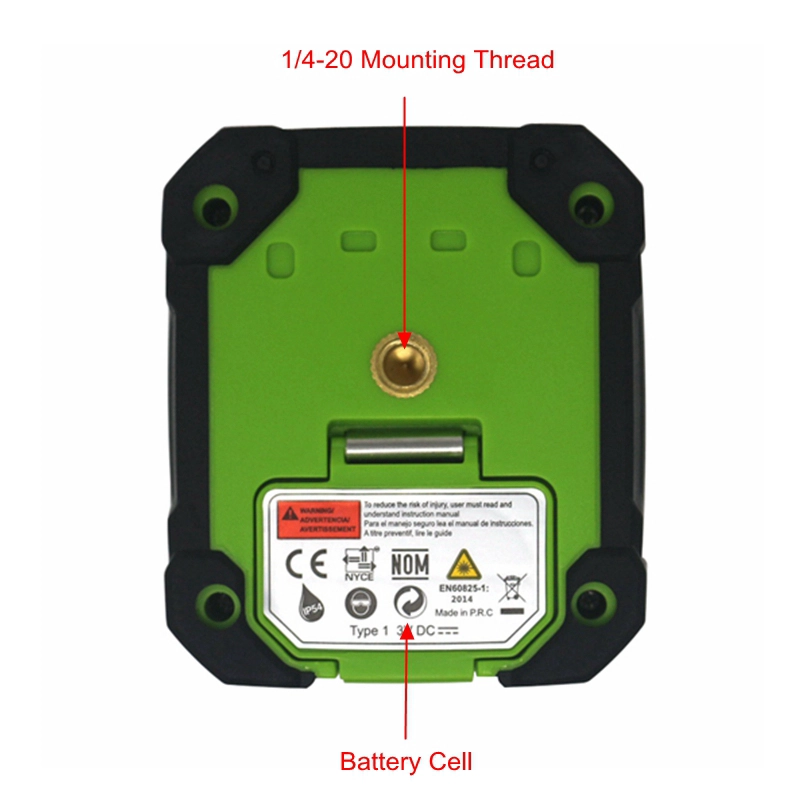

1 / 4-20 Mounting thread and battery cell

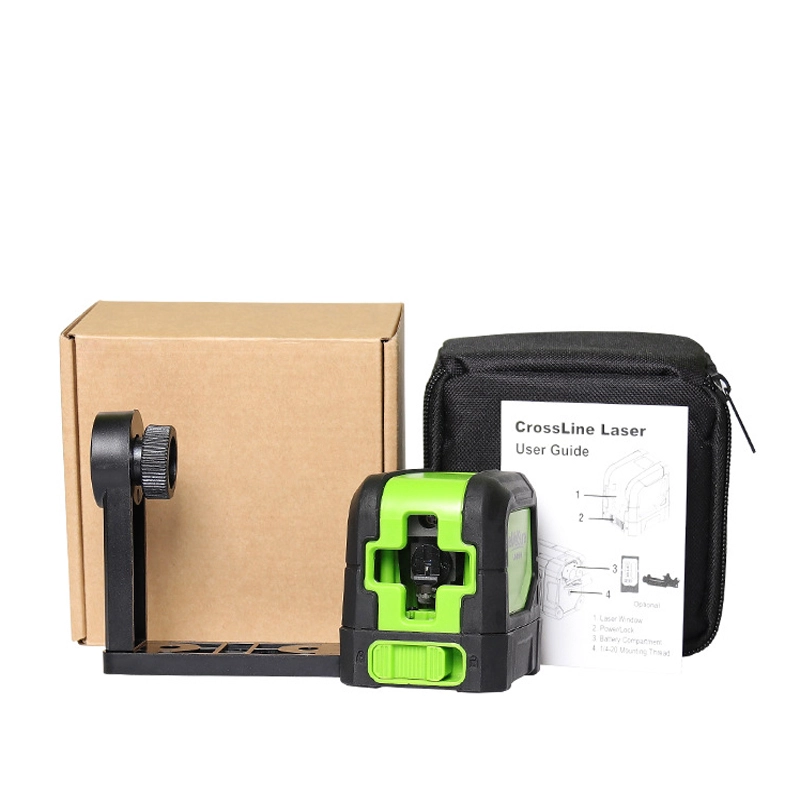

the details for the entire package. The English manual, the 2 lines laser level meter L-shaped bracket, black bag and brown box
1). Terms of payment:
We accept T / T, L / C, Paypal, MoneyGram and Western Union.
30% deposit and 70% balance before shipping.
2). Shipping terms:
It depends on the customer's order quantity and your special request. We adopt Express (DHL, TNT, UPS, FEDEX, EMS, SPSR, 139 express and so on), LCL, FCL
The items will be checked carefully before shipment and we will update the delivery status in good time after sending the goods.
We accept T / T, L / C, Paypal, MoneyGram and Western Union.
30% deposit and 70% balance before shipping.
2). Shipping terms:
It depends on the customer's order quantity and your special request. We adopt Express (DHL, TNT, UPS, FEDEX, EMS, SPSR, 139 express and so on), LCL, FCL
The items will be checked carefully before shipment and we will update the delivery status in good time after sending the goods.
